What is Solar Net Metering and How does it work?

0
703
Solar Net Metering
5 mins read

If you have rooftop solar installed at your house, then you might have heard about the term ‘Solar Net Metering’.

DISCOMS or electric companies install net meters only when you have your solar plant installed on your roof.

Advertisement

So, what is solar net metering and how does it work, let us explore these things.

Customers using rooftop solar systems that are connected to the grid can lower their energy costs by using solar net metering, an energy accounting mechanism.

It has played a significant role in the promotion of rooftop PV installations on a global scale. Customers who have their solar rooftop system installed on their properties are eligible for net metering, which allows their energy bill to be adjusted to reflect the solar electricity generated.

What is Solar Net metering?

Solar Net metering is the way of billing electricity usage (by house owner) after solar plant installation.

If your solar energy system generates more electricity than your home requires, the excess is delivered to the power grid, where your utility will compensate you.

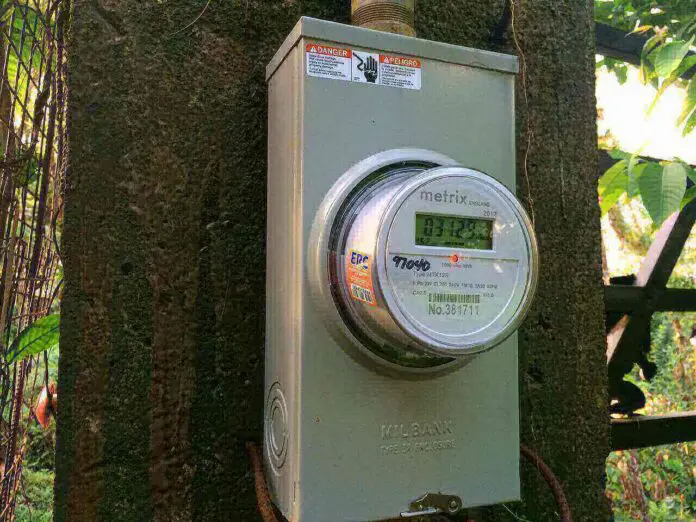

A generation meter that accounts for solar generation and a bi-directional energy meter that records energy import and export are how net metering operates as shown in the below figure –

What is Solar Net Metering

Rooftop solar panels are a terrific method to save money because of net metering!

How does Solar Net metering work?

When you were not having solar panels installed on your house roof, you were having a unidirectional energy meter.

This unidirectional meter simply records your energy usage and you are charged by the utility company accordingly.

For example, if you have consumed 250 kWh or 250 units, the meter will show 250 kWh and you will be charged for 250 units.

For net metering, bi-directional meters are used.

During day time, your solar plant produces electricity. A net meter records the generation. These are usually called export units (kWH).

Export Units during day time

During night time solar panels do not generate power, in this case, you use electricity provided by electric companies or DISCOMS. Net meter considers this as ‘import energy’.

Import units during night time

The net meter does math calculations. But it is not as simple as seems to be.

Let us take an example.

Say, you have installed a 6 kW solar on-grid system. It can produce 620 kWh of energy every month.

Also read: How to calculate number of solar panels for home?

Suppose that you have utilized or imported 150 kWh (units) in that month.

With simple math calculation, you may think that your energy meter would do subtraction like this,

Units generated – Units consumed = Net energy to be billed

620 kWh – 150 kWh = 445 kWh

So, you may think that you would get the payback of 445 units.

Do you think the calculation is this simple?

Then what about the refrigerator, washing machine, dishwasher, TV, grinder and other appliances consume energy during day time.

No, this is not the way the net meter calculates the number of units consumed.

Let us take the same example further.

I would explain how the calculation is done.

Your solar system produces 620 kWh. Say, your home appliances during the daytime consume a total of 125 kWh in a month.

Remember the consumption of 125 kWh is during the daytime in that month. Whatever the energy you consumed during the daytime, you don’t need to import power from the grid.

You are using your solar energy only. The net meter considers units consumed during the daytime (when the sun is shining).

So, your net energy exported in that month would be

620 kWh – 125 kWh = 495 kWh.

This 495 kWh becomes your exported units.

Say, during the night (when the sun is not shining) you import 150 kWh from the grid in that particular month.

These 150 units become your imported units in that month.

The net meter does calculation like this,

Imported Units – Exported Units = Net Energy Consumed

150 kWh – 495 kWh = – 345 kWh

Since imported units are less than what you exported, you won’t get a bill for the month and 345 kWh would be credited in the next billing cycle.

Different Scenarios for Solar Net Metering:

  1. Day Time (when the sun is shining):

During daytime (when the sun is shining) you utilize energy from the solar panels only, the excess of energy is exported to the grid.

  1. Night Time (when the sun is not shining):

Whatever the electricity that you have consumed would be imported from the grid as in night solar panels do not generate any units.

  1. Monsoon:

During the monsoon, the sunlight is covered by clouds. The generation would be less. The excess energy you required during the daytime would be fetched from the grid.

  1. Extra Requirement:

Suppose you have a function in your house and you require extra energy.

You fetch energy from the solar panel. If solar panels, cannot fulfill the requirement, the remaining energy would be fetched from the grid.

  1. Power Shutdown:

During power shutdown, the solar system also gets stopped working. Whatever generation you have won’t be considered as your net meter is not going to work.

This is practice because, if a grid technician is working for some maintenance in the grid, then he may get electrocuted if the solar panel keeps pumping electricity into the grid.

All the on-grid solar inverters come with the anti-islanding property, the safety feature, when grid power cuts down, the solar system also gets shut down by inverters.

Advantages of Solar Net Metering

  • No Battery Needed:

The net metering does not require any battery backup. The grid itself works as a huge battery pack.

  • A win-win situation for both utility companies and homeowners:

With the help of net metering, both utility companies and the home owner can have justice.

The solar system owner cannot claim extra units. Whatever the net meter shows need to be considered by both of them.

Disadvantages of Solar Net metering

I have my solar system installed on my roof. Disadvantages I see is,

  • During power cuts, the net metering system does not work.
  • There is no backup power available during power cuts.

Wrapping Up

Net metering policies are different in different states in India. What I see is, it has encouraged the homeowner to install the solar system. The reason is both homeowner and grid can have a fair advantage.

The grid cannot cut the units extra and the home owner cannot claim extra units. Whatever the net meter shows, both have to accept it.

So, what is your experience with net metering? Please comment to me below.
